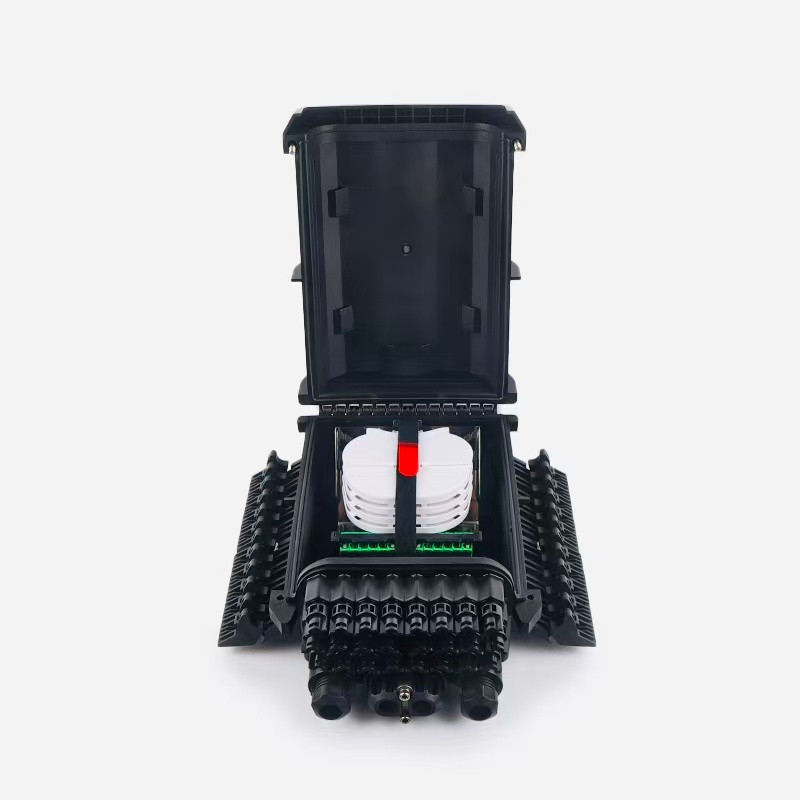

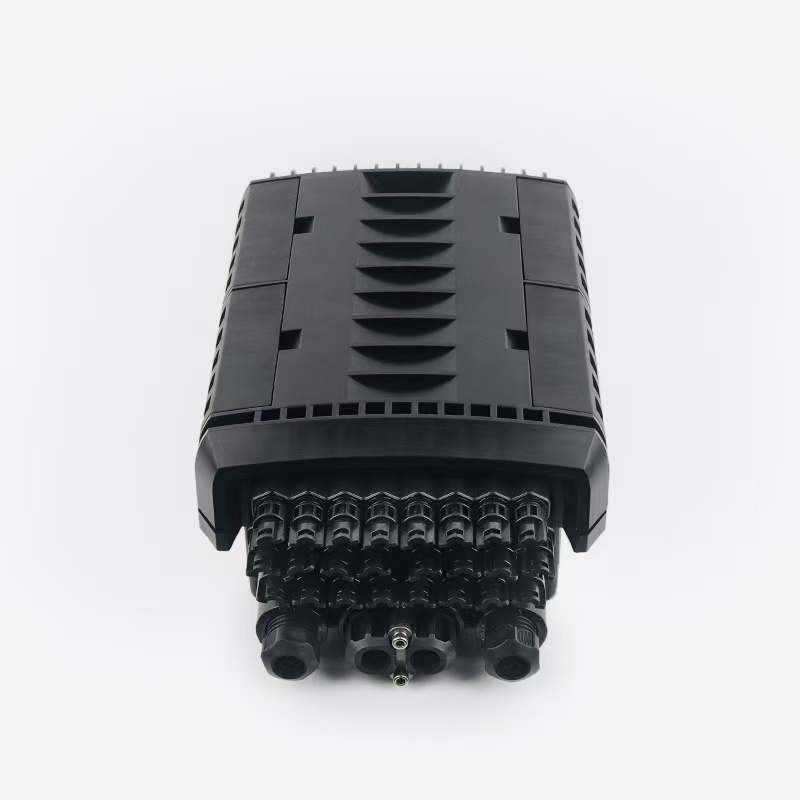

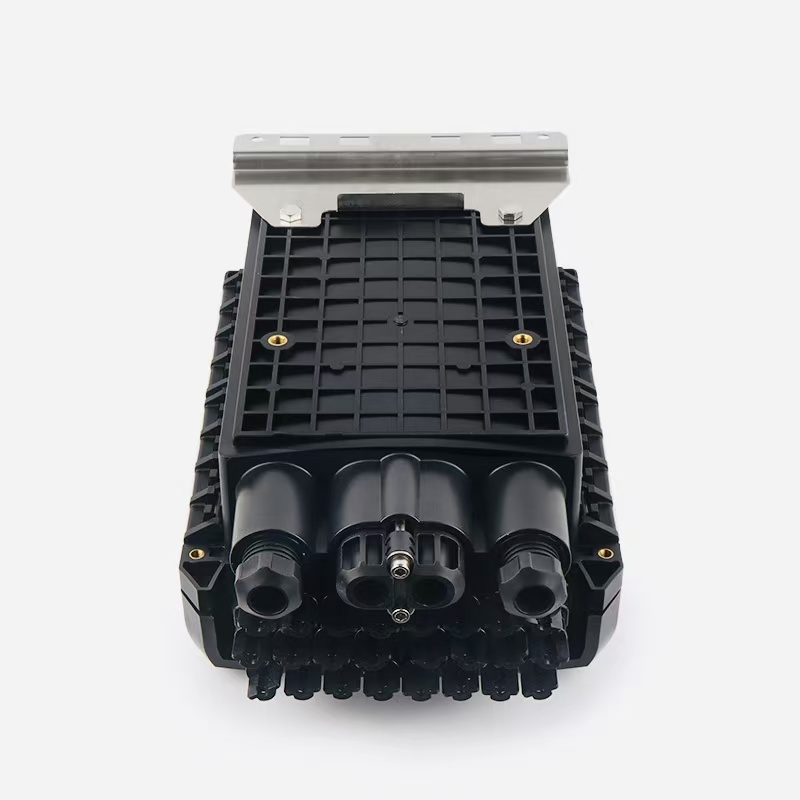

fiber optic box 24 Cores rain proof outdoor FTTH fiber optic distribution box 4 inlet 24 outlet

Product Item : 1
Category： Fiber optic distribution box
fiber optic box 24 Cores
24 port FTTH IP68
24 core Fiber optic Terminal box
FTTH fiber optic distribution box
INQUIRY EMAIL

Product Description:

24 cores Fiber optic distribution box provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

Features:
1). High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.

5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

Product Name	fiber optic distribution box
Material	PC+ABS
imension (mm):	380245130 mm
Weight	4.52KG
Max Capacity	96Core
Maximum install tray Number	4
Ports	4 inlet 24 outlet
Certification	Ip68/Ios9001
