Fiber optic distribution box

Home Products Fiber optic distribution box 16core fiber box 16 port FTTH IP68 Fiber

16core fiber box 16 port FTTH IP68 Fiber optic Terminal box optical distribution box

16core fiber box 16 port FTTH IP68 Fiber optic Terminal box optical distribution box

Product Item : 1
Category： Fiber optic distribution box
16core fiber box
16 port FTTH IP68
16 core Fiber optic Terminal box
16 core optical distribution box
Attachment INQUIRY EMAIL

Product Description:

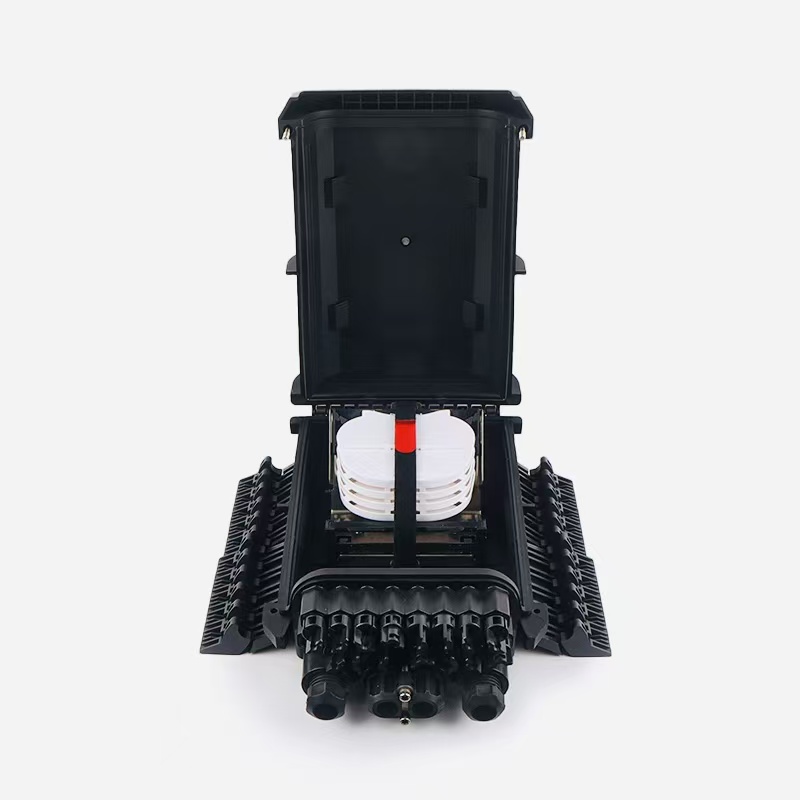

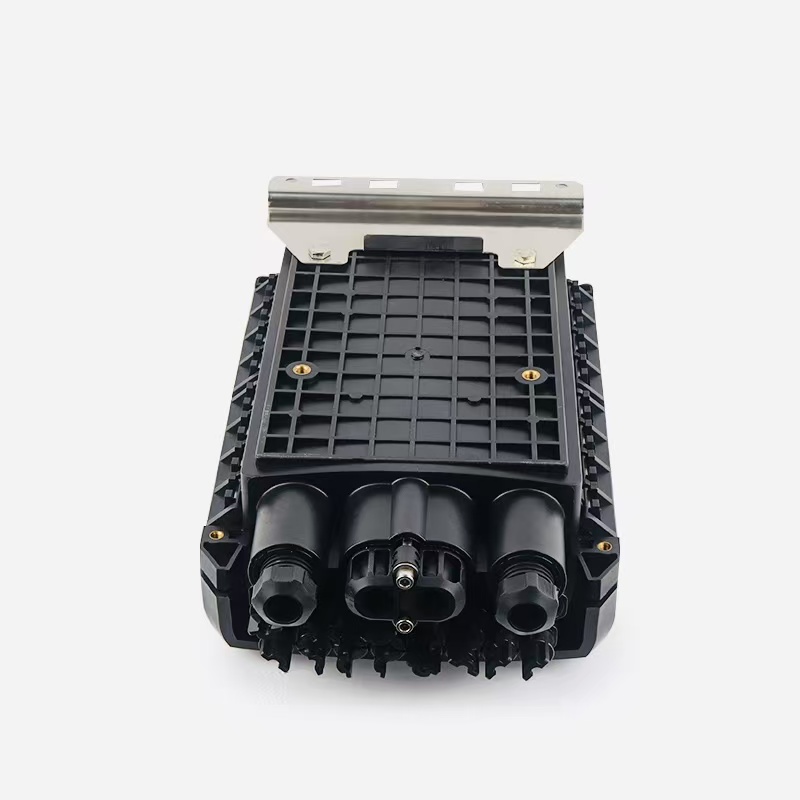

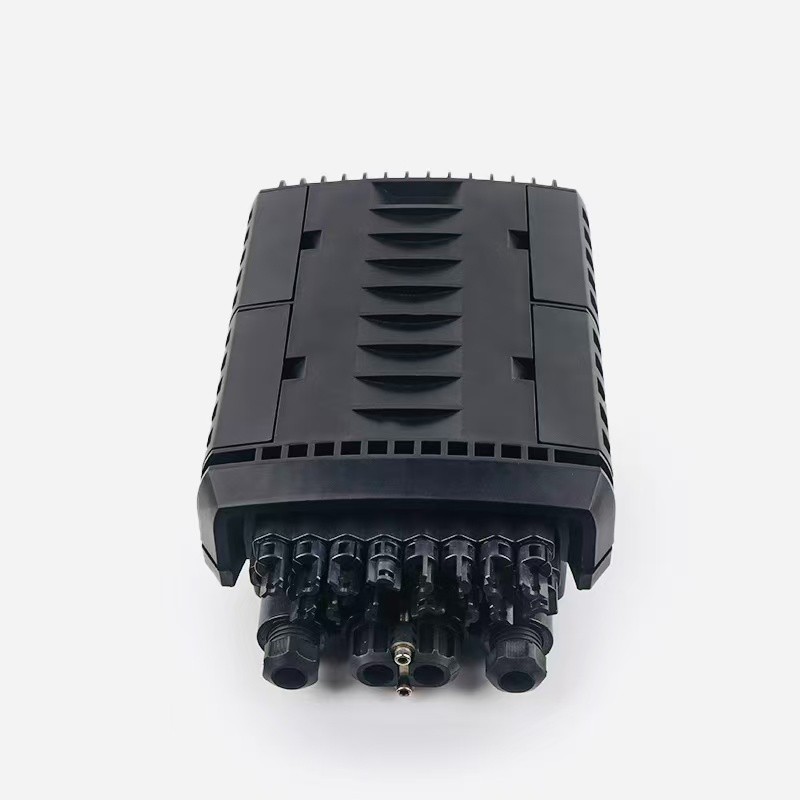

16 drop cable ports 96 cores Fiber optic junction box for FTTH waterproof IP68
FDB0216F fiber access termination closure is able to hold up to 16-24 subscribers and 96 splicing points as closure.

It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box

Specification

Material	Size	Max Capacity		Nos of Adaptor	Weight	Color
Strengthen	ABC(mm)	Splice 96 Fibers	PLC Splitter	24pcs of SC	4.5kg	Black
Polymer Plastic	385245130	( 4trays, 24 fiber/tray)	2pcs of 1x8	24pcs of SC	4.5kg	Black
Polymer Plastic	385245130	( 4trays, 24 fiber/tray)	2pcs of 1x8
