Product Description:
Description:

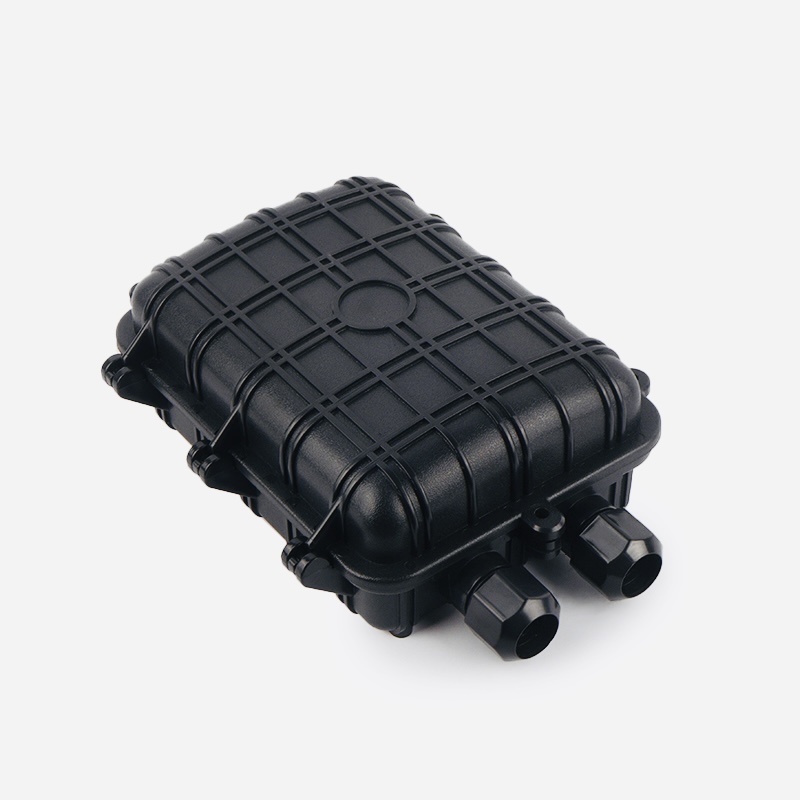

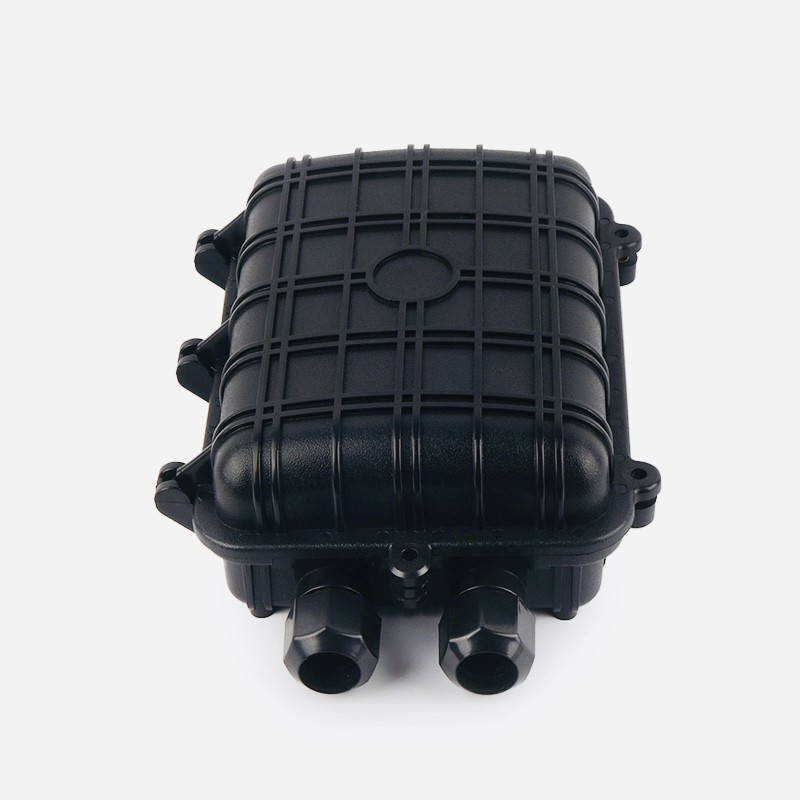

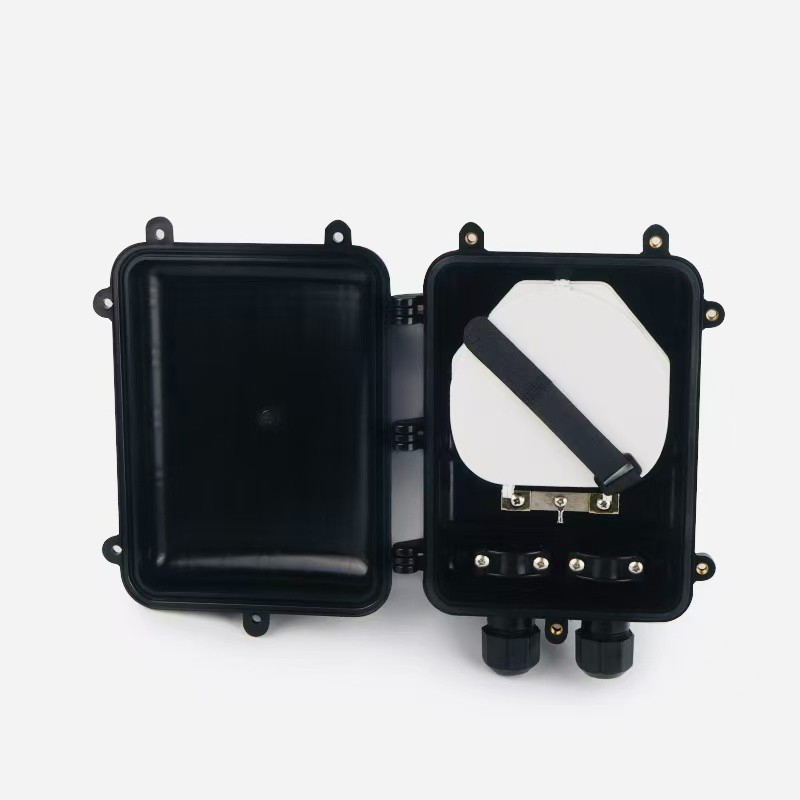

12-48 cores fiber optic splice closureOptical splitter closure provides space and protection for the fiber optic cable splicing and joint.
Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Features:
1). High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.
|
Product Name
|
96 cores fiber optic splice closure
|
|
Material
|
PP/ABS/PC
|
|
Dimension (mm):
|
280(l)×200(w)×90mm(h)
|
|
Weight
|
1.2KG
|
|
Max Capacity
|
96C
|
|
Maximum install tray Number
|
4
|
|
Ports
|
1 inlet 1 outlet
|
|
Suitable Dia of cable
|
14mm
|
