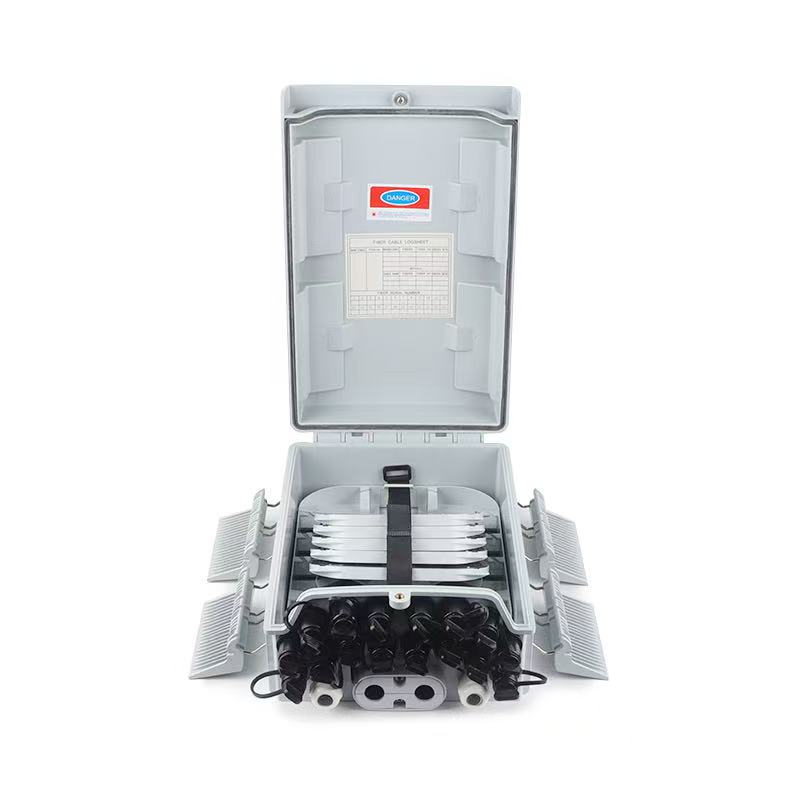

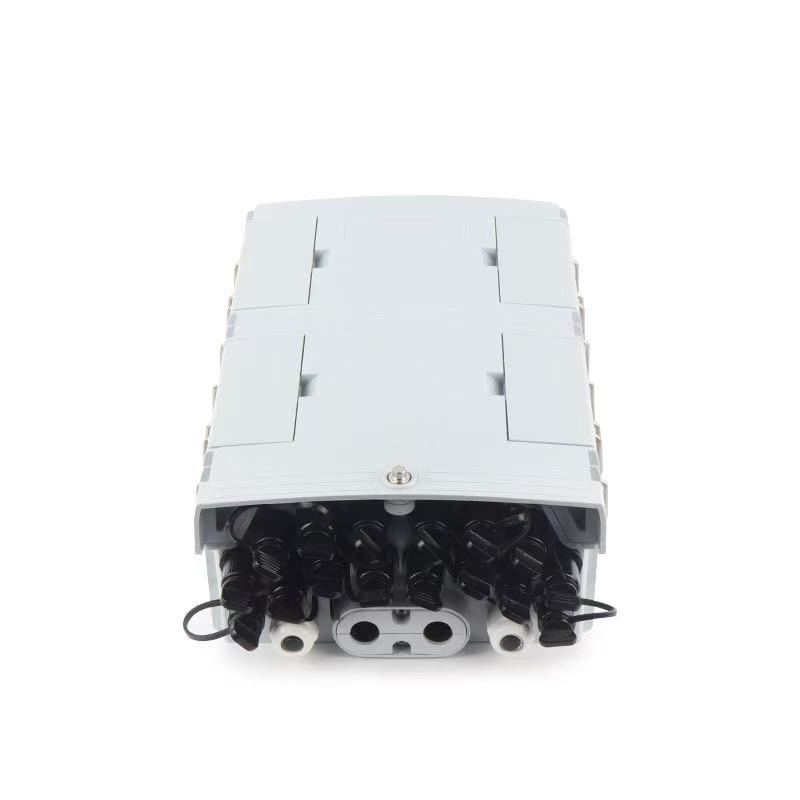

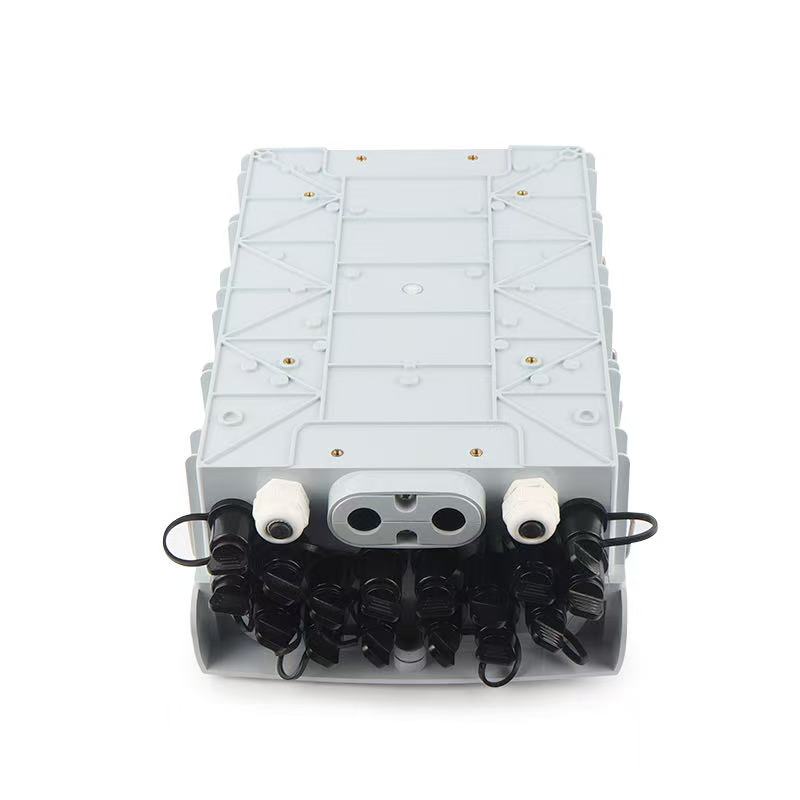

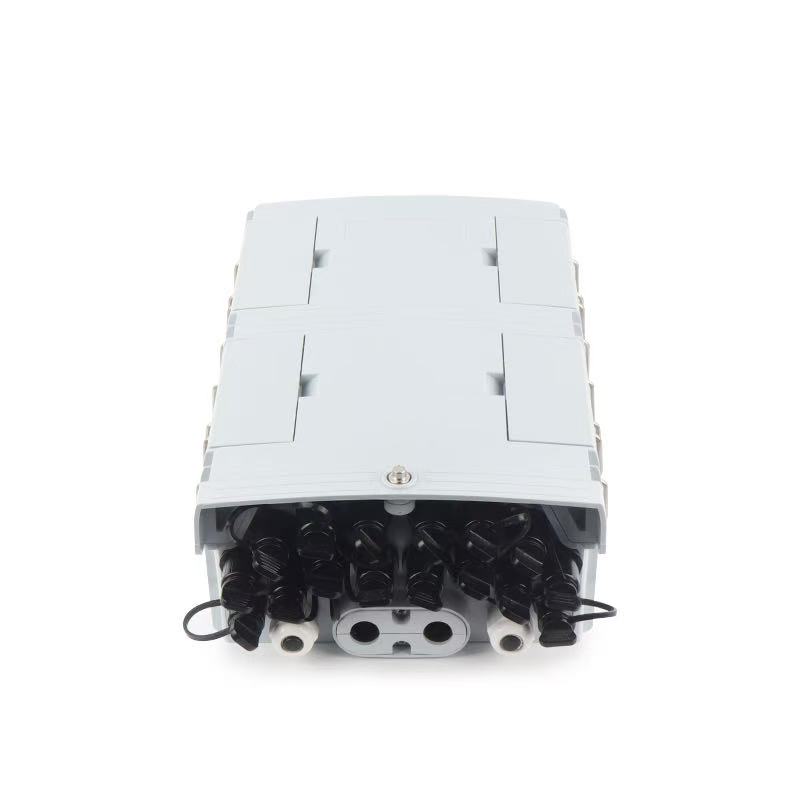

96 Cores 2*16 Outdoor FTTX FTTH Fiber Optic Splitter Distribution Box

96 Cores 2*16 Outdoor FTTX FTTH Fiber Optic Splitter Distribution Box

Product Item : 1
Category： Fiber optic distribution box
16 Outdoor Fiber Optic box
Fiber Optic Splitter Distribution Box
2*16 Outdoor FTTX FTTH Fiber box
Fiber Optic Distribution Box
Attachment INQUIRY EMAIL

Product Description:

Features

l Water-proof design with IP-65 Protection level.

l Integrated with flap-up splice cassette and adapter holder.

l 96F splice capacity and 8 positions for SC adapters.

l Plug-and-play installation, easy for maintenance and expansion.

l Fiber bend radius control more than 40mm.

l 180 degree access with buckled lock structure.

l 1*8 PLC splitter can be installed in each splice tray as option.

l 8 pcs of pre-installed reinforced water-proof adapter for SC.

l 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable(8-16.5mm).

Application

l Wall-mounted Installation

l Pole-mounted Installation

l Aerial-hanging Installation

l Suitable for Huawei pre-connectorized drop cable with reinforced connector

General Introduction

fiber access termination box is able to hold up to 8 subscribers.

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features:	Uncut Port For Feeder Cable	Material:	ABS
Dimension:	34522095mm	Max. Capacity:	96cores
Max. Splice Tray:	4pcs, 24fiber / Tray	Color:	Gray,Black
Adapter:	24SC	Seal Type:	Seal without Screw
Application:	FTTH Pole Mount Or Wall Mount	Cable outputs	16 ports for Mini Connector

Features:	Uncut Port For Feeder Cable	Material:	ABS
Dimension:	34522095mm	Max. Capacity:	96cores
Max. Splice Tray:	4pcs, 24fiber / Tray	Color:	Gray,Black
Adapter:	24SC	Seal Type:	Seal without Screw
Application:	FTTH Pole Mount Or Wall Mount	Cable outputs	8 ports for Mini Connector
